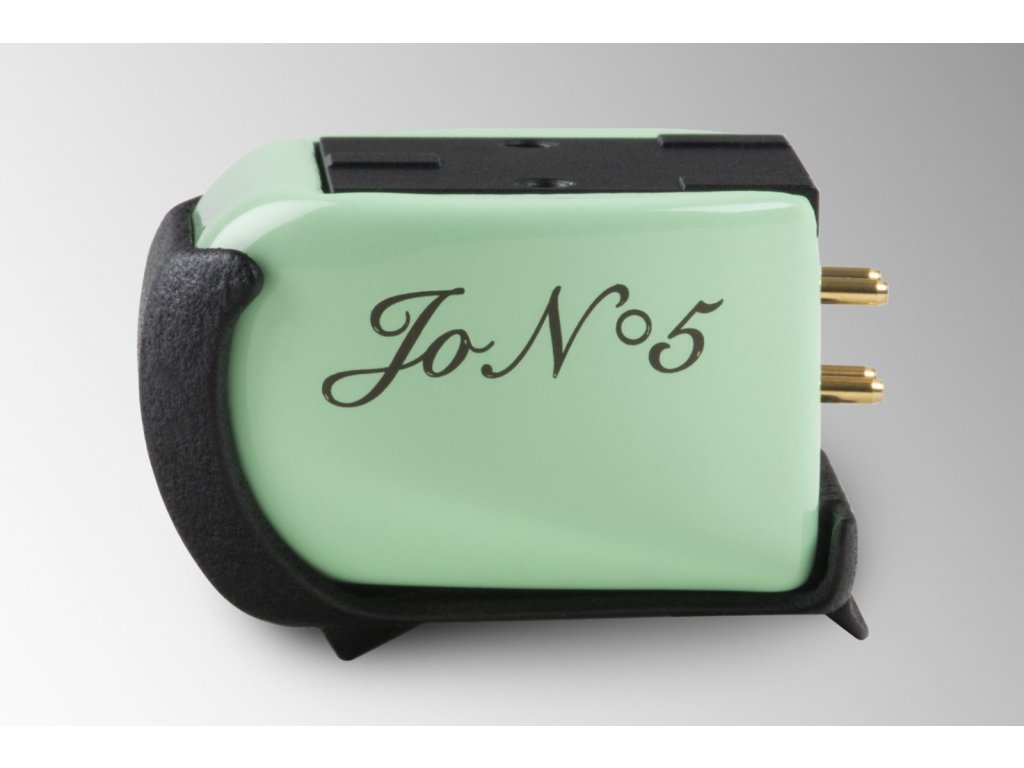

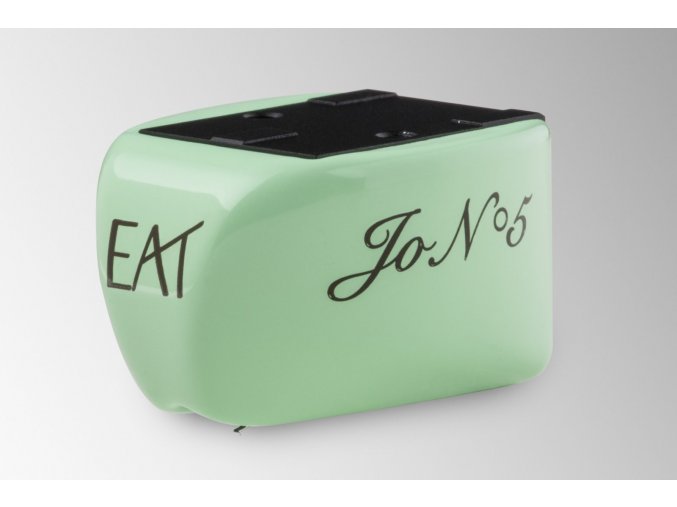

E.A.T. JO N°5 CARTRIDGE TECHNICAL INFORMATION
| STYLUS TYPE | Nude Fine Line |
|---|---|
| CARTRIDGE WEIGHT | 15 g |
| STYLUS TIP RADIUS | 8/40 μm |
| FREQUENCY RESPONSE | 20 – 26.000 Hz ±1.5dB |
| OUTPUT VOLTAGE AT 1000 HZ | 5cm/sec. 0.33 mV |
| CHANNEL SEPARATION AT 1 KHZ | > 25dB |
| CHANNEL SEPARATION AT 15 KHZ | > 16dB |
| CHANNEL BALANCE AT 1KHZ | > 1.2 dB |
| COMPLIANCE, DYNAMIC/LATERAL | 12 μm/mN |
| TRACKING FORCE RANGE | 2.2-2.5 g (22-25 mN) |
| TRACKING FORCE RECOMMENDED | 2.4 g (24 mN) |
| TRACKING ABILITY AT 315 HZ AT RECOMMENDED TRACKING FORCE | 80 μm |
| TRACKING ANGLE | 20° |
| COIL WIRE MATERIAL | Pure 4N copper |
| RECOMMENDED LOAD IMPEDANCE | > 20Ω |
